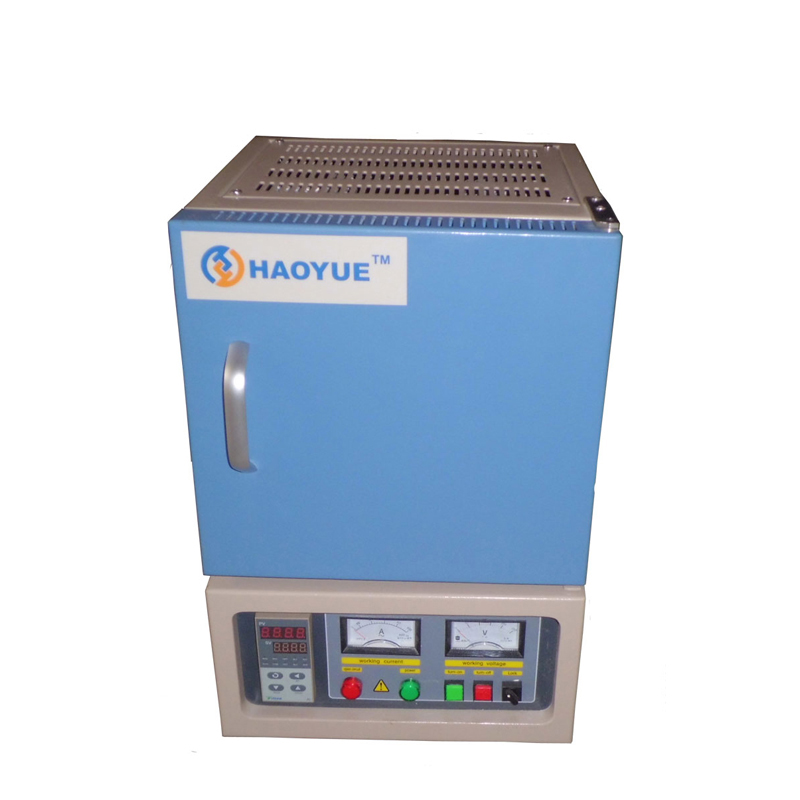

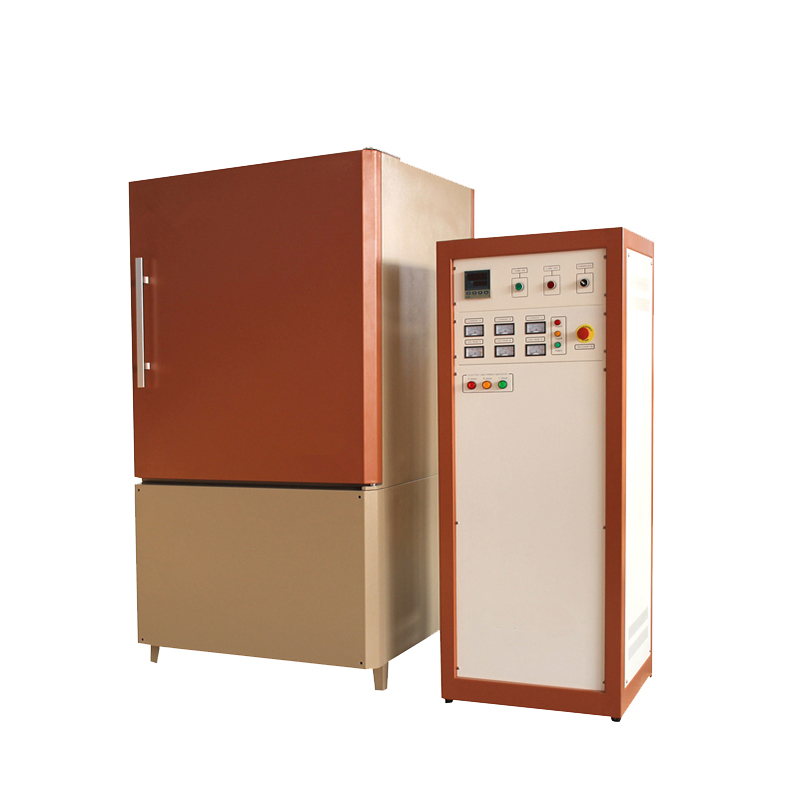

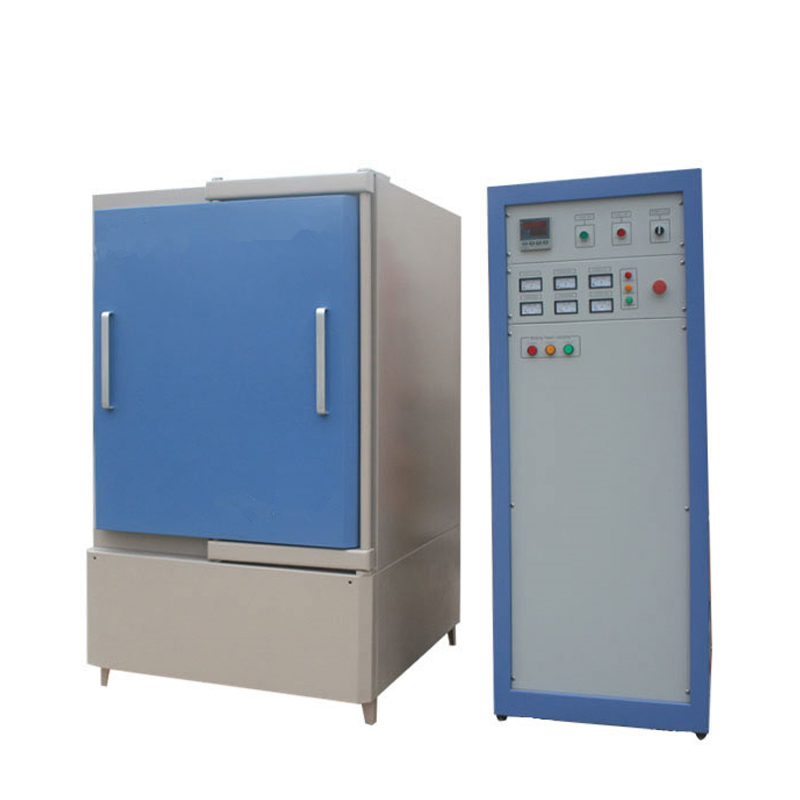

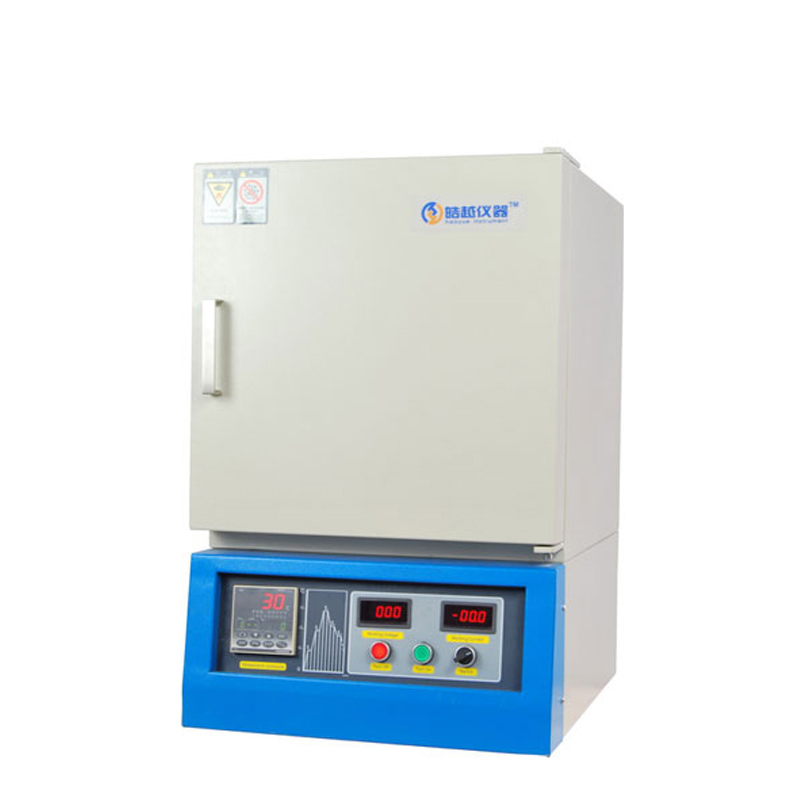

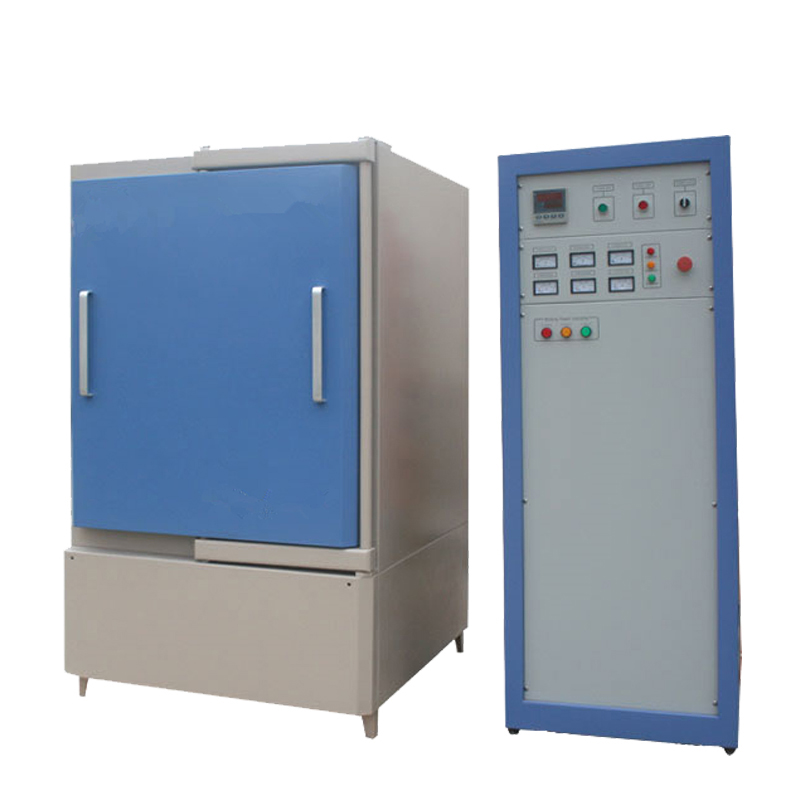

1200℃ Industrial Muffle Furnace
Box furnace is a periodic production kiln, which is specially designed for pre firing and sintering of electronic ceramic components, magnetic materials, ceramic materials, nano powders and other products, as well as sintering process of special ceramic elements in the protective atmosphere, and also can meet the annealing process of high temperature sintering sapphire and quartz products of ITO target.
With the characteristics of stable temperature control, uniform temperature, large output and energy saving, the kiln is very suitable for mass production of enterprises.
Technical Data
Technical Features
All thermal materials are assembled with lightweight porous alumina brick products, and corundum support load-bearing design is adopted in the structure, without cracking and roof collapse.
The furnace adopts special stepped convex concave seal, which has good sealing performance.
Corundum mullite material is used for bearing plate, and corundum mullite pipe is embedded at the bottom to strengthen the support, which can more effectively bear the load and prevent the bearing plate from sinking.
The burning table can be moved out by electric or manual, which is convenient for loading and unloading products and reduces the labor intensity of operators.
The temperature control system adopts imported instrument control, and the instrument is equipped with PID control to improve the stability and accuracy of temperature control.
The automatic heat dissipation device is installed on the top of furnace to shorten the cooling time.
Specifications
| 1200℃ | |||||
| No | Type | Loading method | working zone（mm）W×H×L | Capacity（L） | Note |
| A1 | HMF1200-15/15/15 | SL | 150×150×150 | 3 | Laboratory |
| A2 | HMF1200-20/20/30 | SL | 200×200×300 | 12 | Laboratory |
| A3 | HMF1200-25/25/30 | SL | 250×250×300 | 19 | Laboratory |
| A4 | HMF1200-30/30/40 | SL | 300×300×400 | 36 | Industrial |
| A5 | HMF1200-45/45/45 | SL/TL/BL | 450×450×450 | 91 | Industrial |
| A6 | HMF1200-60/60/60 | SL/TL/BL | 600×600×600 | 216 | Industrial |
The company can provide a variety of non-standard design and manufacture according to user requirements, welcome to inquire.
Application
Box furnace is a periodic production kiln, which is specially designed for pre firing and sintering of electronic ceramic components, magnetic materials, ceramic materials, nano powders and other products, as well as sintering process of special ceramic elements in the protective atmosphere, and also can meet the annealing process of high temperature sintering sapphire and quartz products of ITO target. With the characteristics of stable temperature control, uniform temperature, large output and energy saving, the kiln is very suitable for mass production of enterprises.
