Introduction to Spark Plasma Sintering (SPS)



Spark Plasma Sintering (SPS) is transforming the metal sintering industry with its high-speed heating and space-efficient design. This innovative technology utilizes a combination of pressure and electrical current to achieve rapid heating, significantly reducing processing time compared to conventional sintering methods.



SPS enables the production of advanced materials with superior properties, making it a preferred choice in industries such as aerospace, biomedical, and electronics.

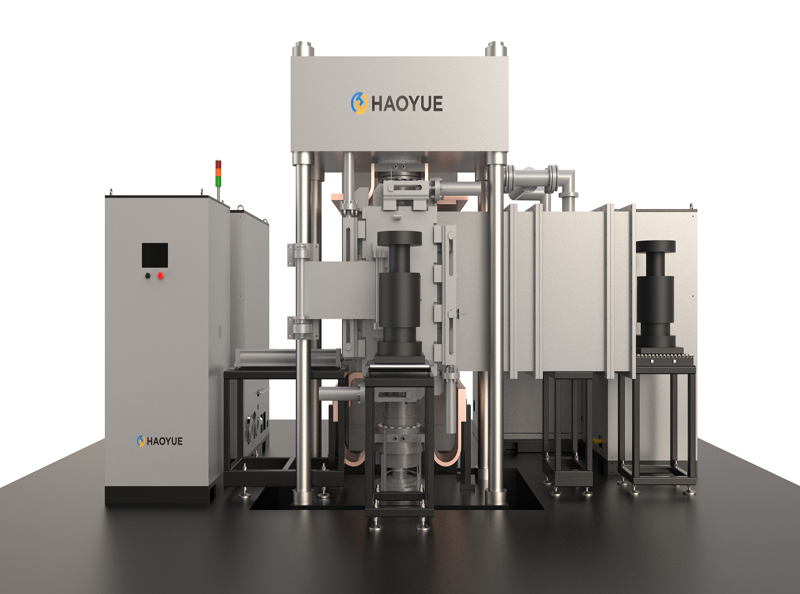

Sps Sintering Furnace


Advantages of SPS Over Conventional Sintering



Spark Plasma Sintering (SPS) offers significant advantages over conventional sintering techniques, transforming the field of powder metallurgy. By combining pressure and electrical current, SPS enables faster, more efficient sintering with superior material properties.



- Reduced Sintering Times

  SPS drastically shortens sintering cycles, completing processes in minutes rather than the hours or days required by conventional methods. This remarkable speed enhances productivity and accelerates material development.



- Lower Sintering Temperatures

  SPS operates at significantly lower temperatures than traditional sintering, making it ideal for materials prone to degradation at high temperatures. This helps preserve their intrinsic properties.



- Extreme Versatility

  SPS is highly adaptable, effectively densifying a wide range of materials, from low-melting-point metals to ultra-high-temperature ceramics. It also enables the sintering of dissimilar materials requiring nonuniform temperature distribution, opening doors to innovative material combinations and complex geometries that conventional sintering cannot achieve.



- High-Precision Process Control

  SPS offers precise control over sintering parameters such as temperature and pressure, ensuring optimal material properties and microstructures. Additionally, it preserves unique chemistries and engineered structures that might otherwise be lost in conventional melting processes.



Applications of SPS



SPS is widely used across various industries, including:



- Energy Storage: Production of high-capacity lithium-ion batteries and advanced energy storage materials.

- Biomedical Engineering: Creation of porous ceramics for drug delivery systems and scaffolds for tissue engineering.

- Advanced Ceramics: Development of high-temperature superconductors and high-performance piezoelectric ceramics.

- Intermetallics: Manufacturing advanced alloys with superior mechanical, thermal, and electrical properties.

- Composites: Fabrication of reinforced ceramics and metals with enhanced mechanical properties.



Applications of Spark Plasma Sintering (SPS)



Aerospace Industry

SPS is widely used in aerospace for producing lightweight, high-strength components like turbine blades, landing gear, and structural parts. The fast sintering process enables fine-grain structures and enhanced mechanical properties, making materials ideal for demanding aerospace applications.



Biomedical Industry

In biomedicine, SPS enables the production of materials for medical implants and devices with specific properties, including biocompatibility, corrosion resistance, and strength. SPS is key in creating orthopedic implants, dental restorations, and tissue engineering scaffolds.



Electronics Industry

SPS is also used in electronics for fabricating components with superior electrical and thermal properties. The rapid heating and cooling rates result in materials with fine-grain structures and reduced defects, improving conductivity, thermal stability, and reliability in devices like semiconductors and capacitors.



Additional Applications of Spark Plasma Sintering (SPS)

Beyond the core industries, SPS is used in various other fields, including:



- Automotive Industry: Manufacturing lightweight, high-performance vehicle components.

- Energy Industry: Creating materials for fuel cells, batteries, and solar panels.

- Defense Industry: Developing materials for armor, weapons, and other military applications.

- Research and Development: Investigating new materials and processes for both academic and industrial purposes.



Principles of Spark Plasma Sintering (SPS)



Spark Plasma Sintering (SPS) combines uniaxial pressure and pulsed electrical current to rapidly heat and bond powder particles. The process is based on several key principles:



Electrical Discharge and Localized Heating:

A DC pulse voltage between powder particles creates an electrical discharge, generating intense heat at particle surfaces. This heat can reach thousands of degrees Celsius, vaporizing impurities and promoting strong bonding by activating particle surfaces.



Uniform Heating and Densification:

Unlike traditional sintering methods, SPS achieves uniform heating throughout the sample due to micro-plasma discharges within the powder bed. This consistent heating ensures uniform shrinkage and densification, leading to high-density materials with improved mechanical properties.



Rapid Sintering and Bonding:

The pulsed electrical current accelerates the sintering process, allowing particles to bond quickly. This results in dense, strong materials produced in a fraction of the time compared to conventional sintering methods.



Minimal Grain Growth and Phase Transformations:

SPS's fast heating and cooling rates minimize grain growth and prevent undesirable phase transformations during sintering, preserving the material's microstructure and properties.



Versatility and Material Compatibility:

SPS is highly versatile, applicable to a wide range of materials, including metals, ceramics, composites, and nanomaterials. It is particularly effective for materials that are challenging to sinter conventionally, such as those with high melting points or high reactivity.



Versatility and Applications of Spark Plasma Sintering Furnaces



Spark plasma sintering (SPS) furnaces are highly versatile, capable of sintering a wide range of materials, including metals, ceramics, nanomaterials, non-crystalline materials, composite materials, and functionally graded materials. This broad material compatibility makes SPS an essential tool for both research and industrial applications.



Comparison with Other Sintering Techniques



SPS distinguishes itself from other sintering methods, such as hot isostatic pressing (HIP), by combining electric current and physical compression to consolidate powder materials into a solid form. Unlike HIP, which relies solely on high pressure and temperature, SPS enables faster, more efficient sintering. This results in superior material properties and significantly reduced production times.



Factors to Consider When Choosing an SPS Furnace



When selecting an SPS furnace, key factors to evaluate include chamber size, temperature and pressure requirements, material compatibility, and additional features.



- Chamber Size: The chamber size determines how many samples can be processed at once. Smaller furnaces suit few samples, while larger ones can handle dozens or more. Choose based on your material volume.

- Temperature Requirements: Ensure the furnace can reach the necessary sintering temperatures for your materials. Higher temperature furnaces offer more flexibility but can be more expensive.

- Pressure Capabilities: If processing under high pressure is required, ensure the furnace can generate the necessary pressure to enhance sintering and improve material properties.

- Material Compatibility: The furnace material must be compatible with the materials being processed to avoid contamination or damage.

- Other Considerations:

  - Heating and Cooling Rates: Choose a furnace that meets the required heating and cooling speeds for your materials.

  - Atmosphere Control: If specific atmospheres are needed during sintering, ensure the furnace can accommodate this.

  - Safety Features: Look for features like over-temperature protection and pressure relief valves to ensure safe operation.

  - Cost: Set a budget, as SPS furnaces can vary widely in price.
